LUMATEK - ZEUS 600W PRO | 3.1 µmol/J

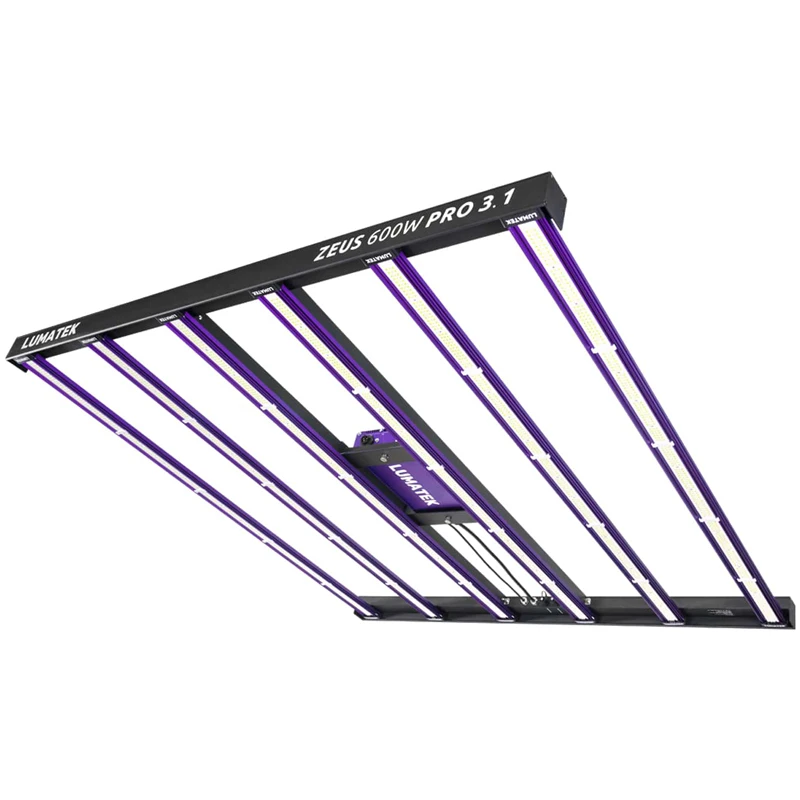

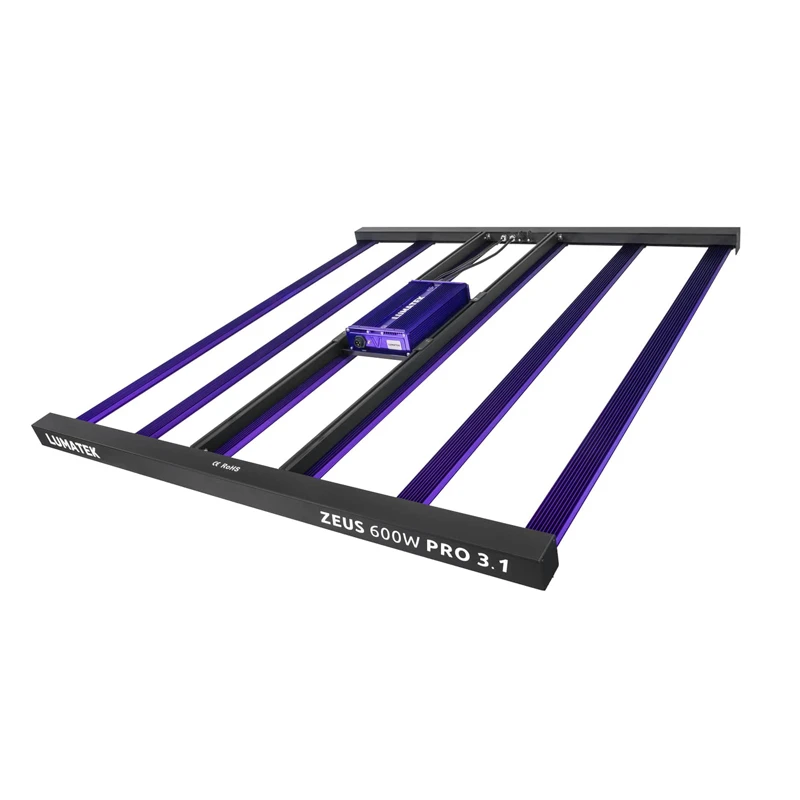

The new LUMATEK ZEUS 600W PRO 3.1 LED, with higher specifications, is a linear aluminum bar light fixture that produces high levels of PPF, at 1990 µmol/s, achieving a photon efficacy of 3.1 µmol/J.

As diode technology becomes increasingly innovative, LUMATEK has improved the total output of photosynthetic photons, thereby increasing total photons available for plant cultivation by 10%. This means that this fixture will now cover 1.5 x 1.5 m for both vegetative and flowering stages.

The LUMATEK ZEUS 600W PRO 3.1 range creates a uniform diffusion of full-spectrum photons at short distances from the crop, allowing for a lighting solution for single-source cultivation systems, single benches in low-ceiling rooms, and grow tents.

The new version 3.1 of the ZEUS luminaire, a worthy successor to the ZEUS 600W PRO 2.9, winner of the Spannabis award for best cultivation product, is built using efficient and high-quality LUMATEK drivers and the latest generation top bin LEDs from Samsung LM301H EVO and Osram 4.24, which generate an ideal full-spectrum light source for full-cycle cultivation. The Clear Glue protection technology of the LED bars ensures superior light transmittance of over 99% without major light losses, increased diode lifespan, enhanced corrosion resistance, and IP65 protection rating.

The LUMATEK ZEUS 600W PRO 3.1 can be dimmed for different cultivars, propagation, and vegetative growth periods without losing efficiency. The high-efficiency, low-power LED configuration with 6 LED bars reduces LED temperature, increasing yield and improving light maintenance.

As usual, this fixture can be externally controlled with a LUMATEK Control Panel Plus 2.0, offering light timing, automatic dimming (1% increments), temperature safety control, sunrise and sunset modes for up to 100 units of LUMATEK ZEUS 600W PRO 3.1 luminaires per controller.

The LUMATEK ZEUS 600W PRO 3.1 will continue to amaze the horticulture industry with its significant impact on the grower community, assisting beginners, professionals, and large-scale commercial crop production facilities in their growth.

Technical Specifications Zeus 600W PRO Lumatek:

• Light Distribution: 120°
• Light Source: SAMSUNG LM301H EVO | OSRAM 4.24
• Input Voltage: 220-240 V AC, 50-60 Hz
• Input Power: 640 W (2.9 A @230 V AC)
• Efficacy: 3.1 µmol/J
• PPF: 1990 µmol/s
• Coverage: 1.5 x 1.5 m
• Power Factor: > 0.95
• Dimming: OFF-25-50-75-100% with 0-10 V dimmer (included)
• External Control: With Lumatek Digital Panel Plus 2.0 or 0-10V universal controller
• Daisy Chain Capability: Yes
• Weight: 13.5 Kg
• Dimensions: 1182 x 1091 x 52 mm
• Spectrum: Full Spectrum F
• Thermal Management: Passive cooling
• Lifetime: L90 > 60000 hrs
• Warranty: 5 Years
• IP Rating: IP65
• Certifications: CE, EMC, LVD

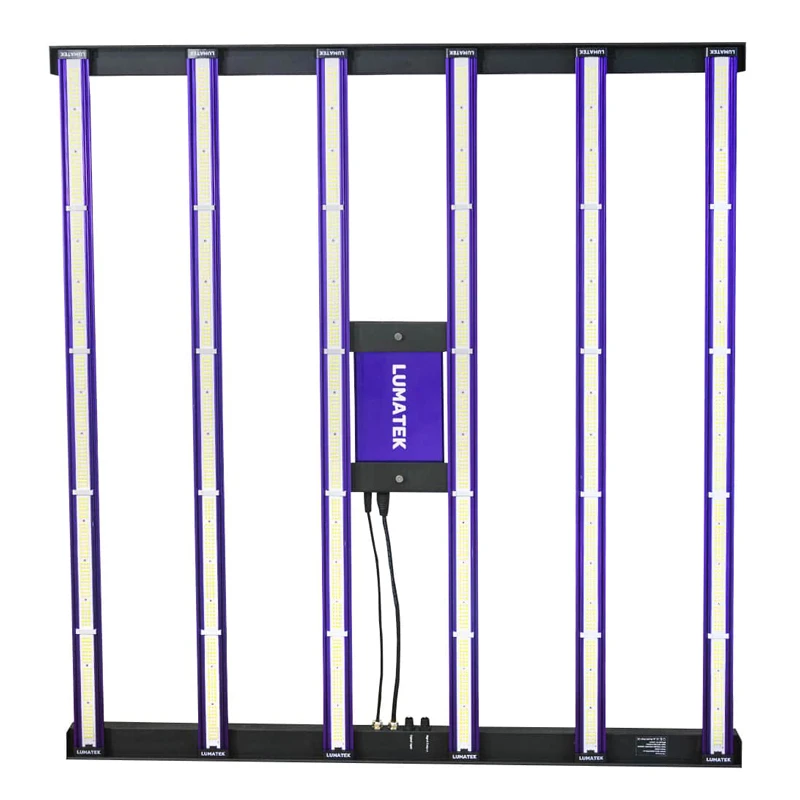

• 6 x LUMATEK 100W PRO 3.1 light bars with full spectrum magnets

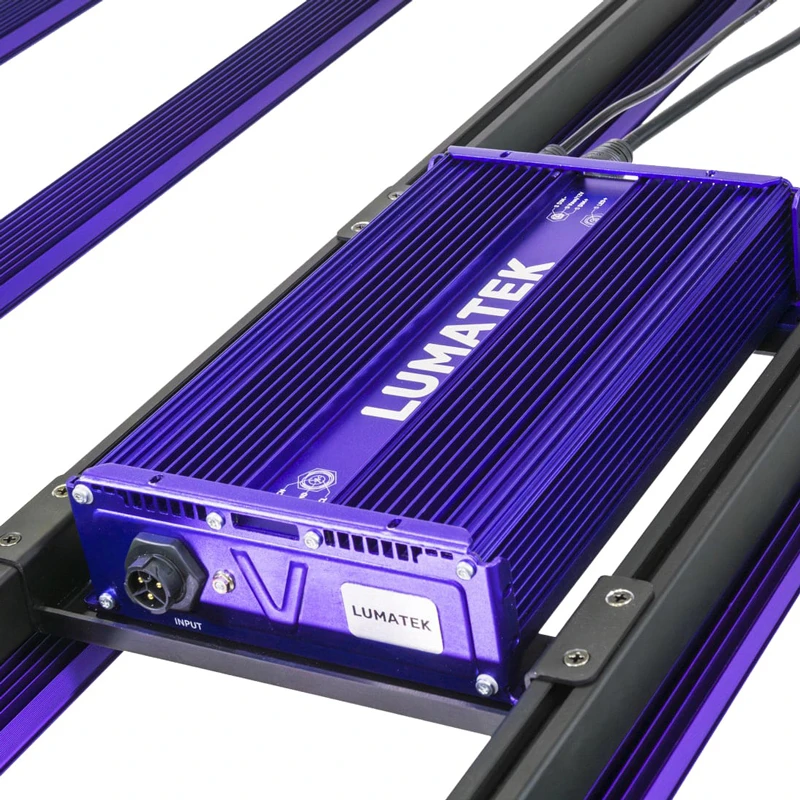

• 1 x LUMATEK 600W PRO 3.1 Driver with connecting cables
• 1 x LED frame with connecting cables
• 1 x 0-10V Light Dimmer + velcro
• 2 x metal cable hooks
• 1 x manual

Key Features Zeus 600W PRO Lumatek:

• Very high efficacy up to 3.1 µmol/J
• Very high PPF output for high intensity 1990 µmol/s
• High-quality Lumatek LED driver
• Top bin LEDs
• Balanced full spectrum
• Clear glue protection technology
• External control with LUMATEK CONTROL PANEL 2.0 control panel
• Replaceable light bars with Pro 3.1 100W magnets
• Fully dimmable
• Easy-to-use Plug & Play mounting
• Detachable driver for remote use
• 5 Years warranty
